Pi-Chrome Project

Objective: Learn how to 3D print a modification for the Canakit Extreme kit to hold the OLED display screen.

Materials: 3D Printer (PLA filament), Canakit Extreme Raspberry Pi Kit (Aluminum version)

If you are using the Canakit Extreme Raspberry Pi kit, this lesson will guide you through printing a modification.  This version of the Raspberry Pi case by Canakit has a black plastic cover.  It is this cover that we will print with a couple of modifications - the most prominent is an opening that will receive the OLED display.

Please follow the link below to acquire the 3D print file, which is of type “.STL”.

Resource Links:

Canakit Extreme (Aluminum version): https://www.canakit.com/raspberry-pi-4-extreme-aluminum-case-kit.html

Canakit Extreme MOD 3D Print File (STL file format): https://www.thingiverse.com/thing:5453492

Pictures:

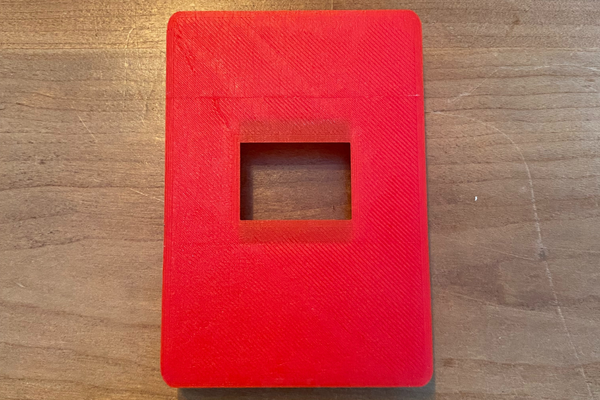

Canakit Extreme OLED Mod (Picture 1)

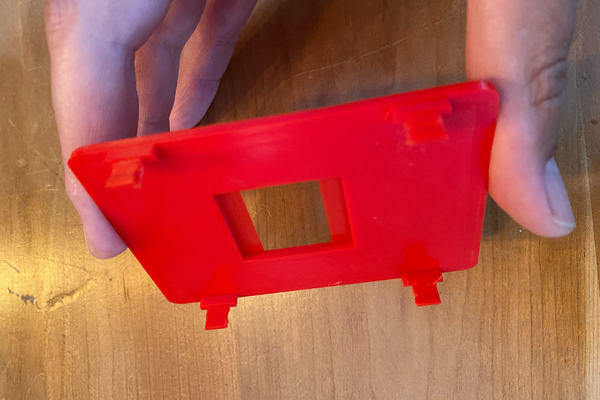

Canakit Extreme OLED Mod (Picture 2)

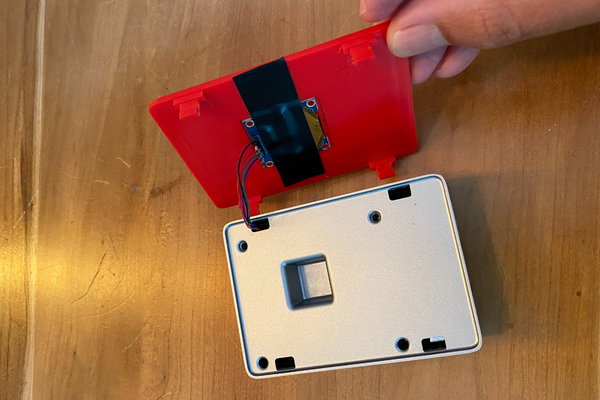

Canakit Extreme OLED Mod (Picture 3)

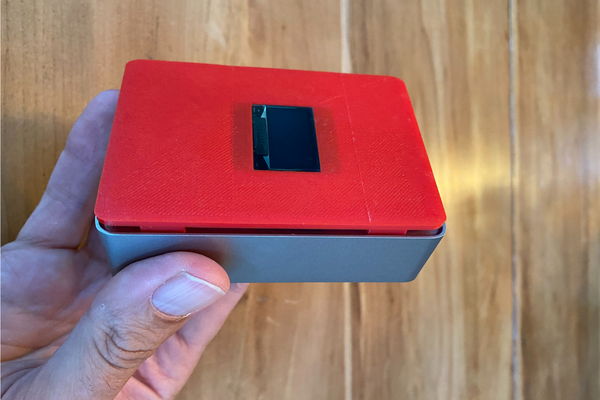

Canakit Extreme OLED Mod (Picture 4)

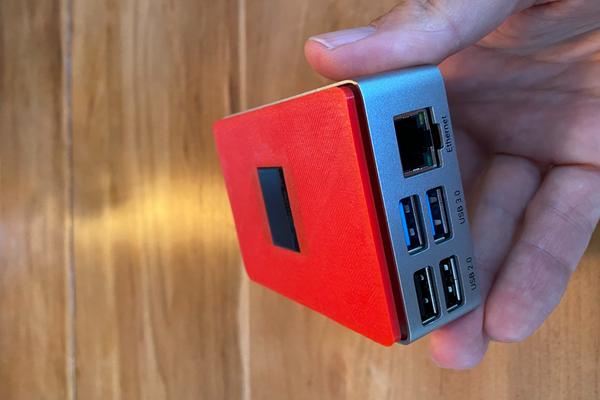

Canakit Extreme OLED Mod (Picture 5)

Videos: None
